ll::Node Class Reference

#include <Node.h>

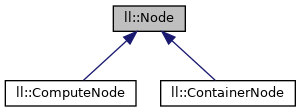

Inheritance diagram for ll::Node:

Public Member Functions
virtual	~Node ()=default
void	setState (const ll::NodeState tState)
ll::NodeState	getState () const noexcept
void	init ()
virtual ll::NodeType	getType () const noexcept=0
	Gets the node type. More...
virtual bool	hasPort (const std::string &name) const noexcept=0
	Returns whether or not a port exists with a given name. More...
virtual std::shared_ptr< ll::Object >	getPort (const std::string &name) const =0
	Gets a port descriptor given its name. More...
virtual void	setParameter (const std::string &name, const ll::Parameter &value)=0
	Sets a parameter. More...
virtual const ll::Parameter &	getParameter (const std::string &name) const =0
	Gets a parameter. More...
virtual void	bind (const std::string &name, const std::shared_ptr< ll::Object > &obj)=0
	Binds a ll::Object as port index for this node. More...
virtual void	record (ll::CommandBuffer &commandBuffer) const =0
	Records the operations required to run this node in a ll::CommandBuffer. More...

Protected Member Functions
virtual void	onInit ()=0

Constructor & Destructor Documentation

~Node()

virtual ll::Node::~Node ( )

virtualdefault

Member Function Documentation

bind()

virtual void ll::Node::bind ( const std::string &  name, const std::shared_ptr< ll::Object > &  obj  )

pure virtual

Binds a ll::Object as port index for this node.

Parameters

[in]	name	The port name.
[in]	obj	The object to bind.

Exceptions

std::system_error

if obj cannot be mapped as a port at position index.

Implemented in ll::ContainerNode, and ll::ComputeNode.

getParameter()

virtual const ll::Parameter& ll::Node::getParameter ( const std::string &  name ) const

pure virtual

Gets a parameter.

Parameters

[in]

name

The parameter name

Returns

The parameter.

Exceptions

std::system_error

With error code ll::ErrorCode::KeyNotFound if name is not in the parameters table.

Implemented in ll::ContainerNode, and ll::ComputeNode.

getPort()

virtual std::shared_ptr<ll::Object> ll::Node::getPort ( const std::string &  name ) const

pure virtual

Gets a port descriptor given its name.

Parameters

[in]

name

The name

Returns

The port descriptor.

Exceptions

std::system_error

With error code ll::ErrorCode::KeyNotFound if name is not in the ports table.

Implemented in ll::ContainerNode, and ll::ComputeNode.

getState()

ll::NodeState ll::Node::getState ( ) const

noexcept

getType()

virtual ll::NodeType ll::Node::getType ( ) const

pure virtualnoexcept

Gets the node type.

Returns

The type.

See also

ll::NodeType

Implemented in ll::ContainerNode, and ll::ComputeNode.

hasPort()

virtual bool ll::Node::hasPort ( const std::string &  name ) const

pure virtualnoexcept

Returns whether or not a port exists with a given name.

Parameters

[in]

name

The name of the port.

Returns

true if the port exists, false otherwise.

Implemented in ll::ContainerNode, and ll::ComputeNode.

init()

void ll::Node::init

(

)

onInit()

virtual void ll::Node::onInit ( )

protectedpure virtual

Implemented in ll::ContainerNode, and ll::ComputeNode.

record()

virtual void ll::Node::record ( ll::CommandBuffer &  commandBuffer ) const

pure virtual

Records the operations required to run this node in a ll::CommandBuffer.

Parameters

[in]

commandBuffer

The command buffer.

Exceptions

std::system_error

with corresponding error code and message.

Implemented in ll::ContainerNode, and ll::ComputeNode.

setParameter()

virtual void ll::Node::setParameter ( const std::string &  name, const ll::Parameter &  value  )

pure virtual

Sets a parameter.

Parameters

[in]	name	The name
[in]	defaultValue	The value.

Returns

A reference to this object.

Implemented in ll::ContainerNode, and ll::ComputeNode.

setState()

void ll::Node::setState

(

const ll::NodeState

tState

)

---

The documentation for this class was generated from the following file:

• /root/project/lluvia/cpp/core/include/lluvia/core/node/Node.h
